Brent Clay Extruder

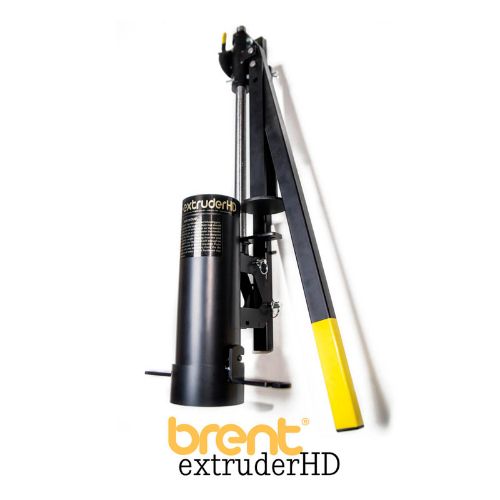

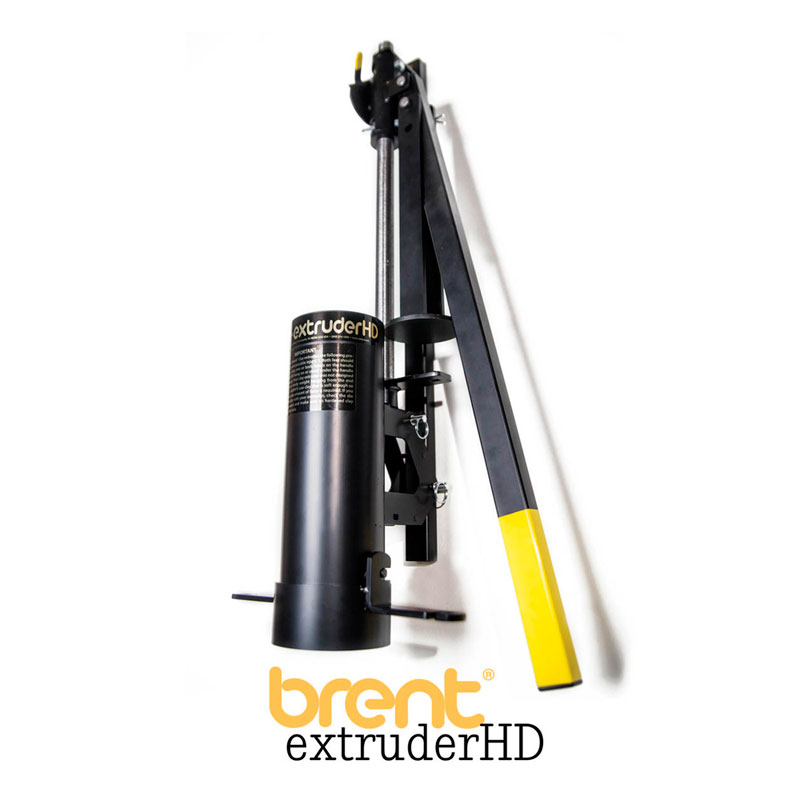

The brent®22863X Extruder HD is a 4" Heavy-duty wall-mount clay extruder with featuring Brent's exculsive EZ-Lock Handle.

The brent®manual clay extruder makes thousands of different solid or hollow shapes: tubes, bars, tiles, slabs... the possibilities are endless.

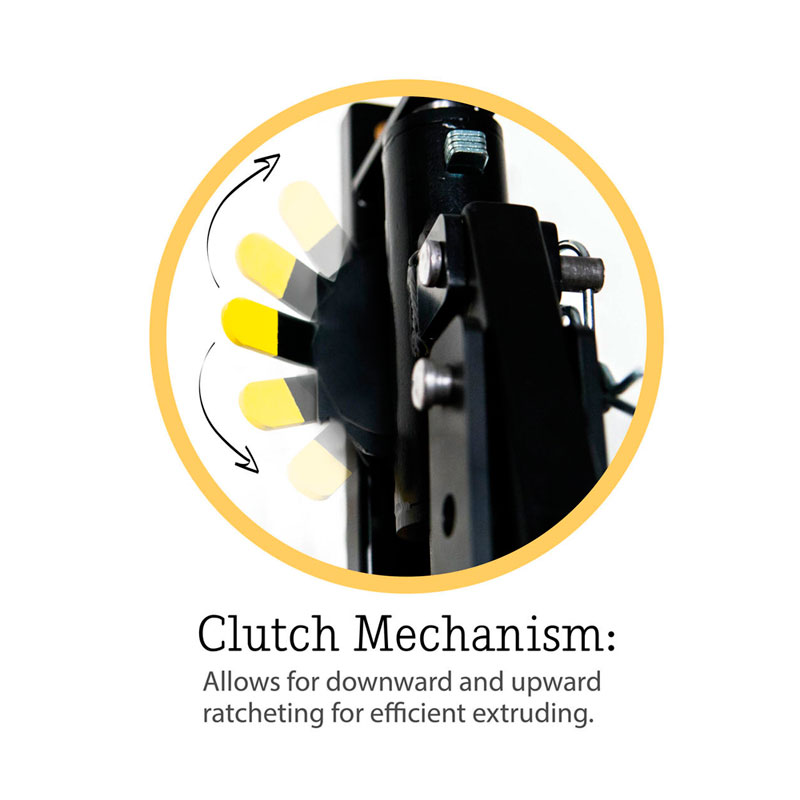

This solid welded steel clay extruder features an exculsive brent® safety design. Two sets of clutch plates lock the clutch body assembly firmly in place at any height setting for maximum leverage. Pull up on the top plates to raise the handle and plunger or pull down on the bottom plates to lower them.

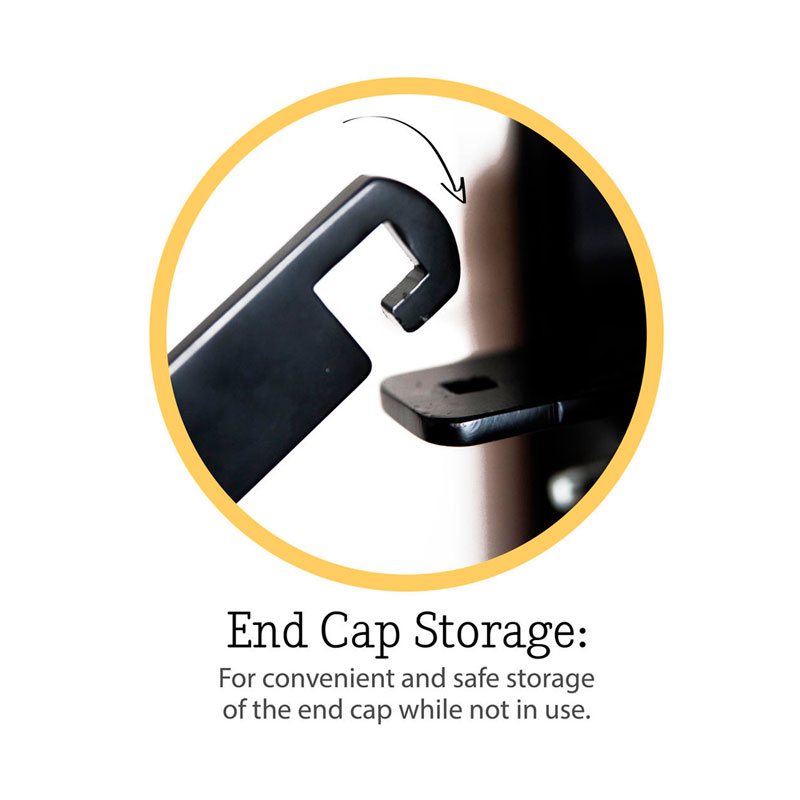

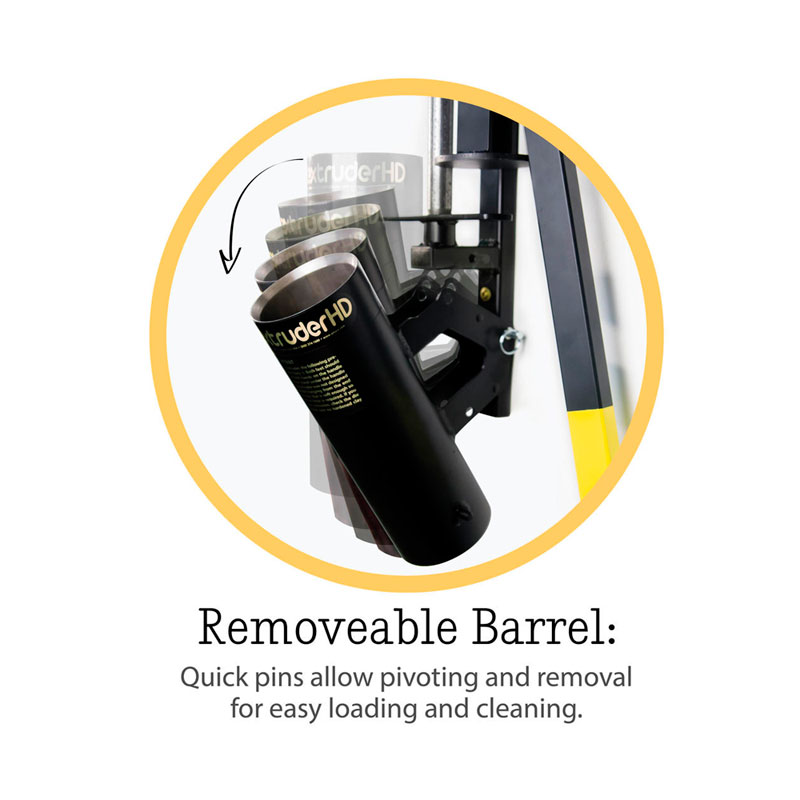

Construction is heavy-duty steel pipe with wear and stress points case-hardened to withstand all production applications. The barrel is 4 inches (~10.2cm) wide and holds 10 pounds of clay (~4.5kg). An easy-to-remove end cap holds the die you choose. Pull the handle and use the extrusion for twists and braids, moldings, handles, cups or coils.

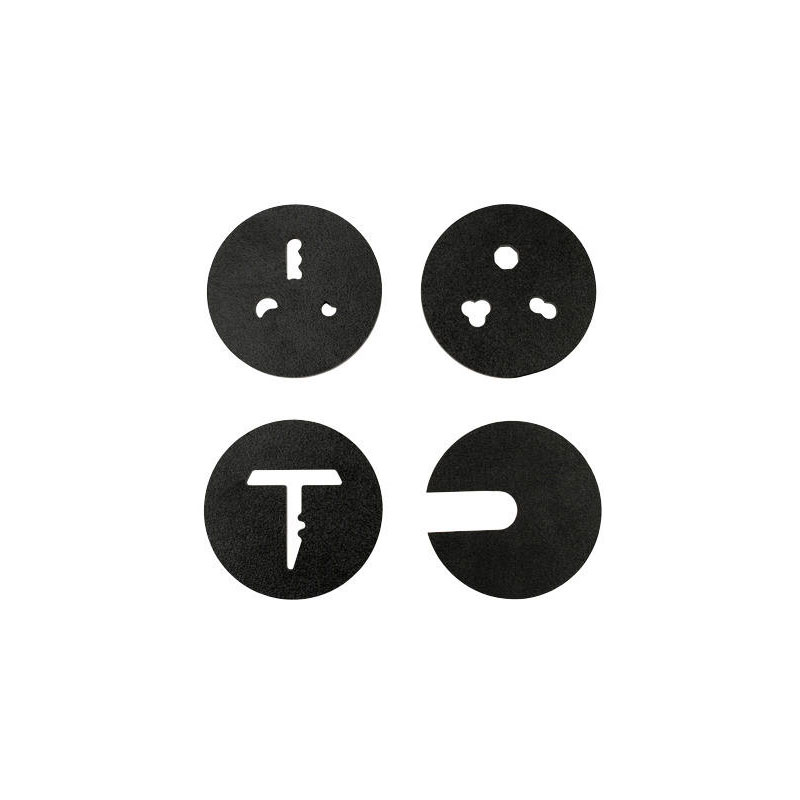

This clay extruder comes with the hardware needed to be bolted to a wall or bench and a 3-piece plastic die set with selector.

And can also be used with the optional anodized aluminum Standard Die Set or the Hollow Die Set.

Barrel Size:  4 inches (~10.2cm) wide
Capacity: 10 pounds of clay (~4.5kg)
Warranty: 1 year warranty
Inclusions: 3-piece plastic die set with selector

An optional stand can be purchased separately (on special order) to attach it to the end of brent® SR-14, SR-20 and SR-36 slab rollers.
