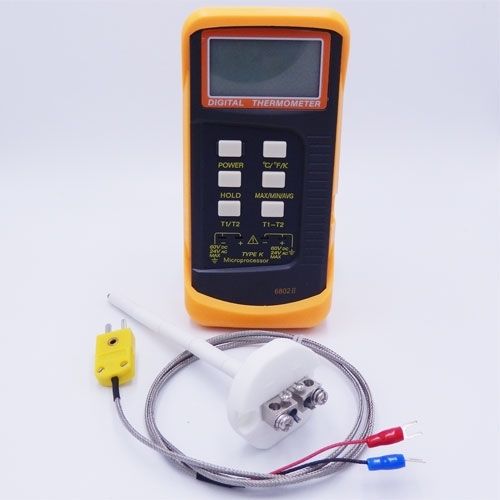

Digital Pyrometer Kit with 130mm Thermocouple and Lead Wires

This kit includes a Digital Pyrometer, 130mm K-Type High Temperature (1300°C) Thermocouple and 1m length Lead Wires.

Features:

• 5 digits Large LCD display
• High Resolution
• User Calibration of Temperature
• Low battery indication
• Data Hold function mode
• Maximum (MAX), Minimum (MIN) and Average Temperature Measurement (AVG)
• 2 channel temperature measurement (T1 & T2)
• Differential Temperature Measurement (T1 - T2)
• Switchable between °C, °F & K

Specifications:

• Temperature range: -50 ~ 1300 °C (-58 ~ 2372 °F)
• Accuracy: ±0.1 °C ± 0.4
• Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
• Operating Humidity: 0 ~ 70 % (R.H.)
• Power current: One K-type: approx DC 2.8mA(typical) / Two K-type: approx. DC 3mA(typical)
• Celsius and Fahrenheit selectable
• Input protection: 60V DC or 24V AC maximum input voltage on any combination input pins
• Reading rate: 2.5 times per second
• Input connector: accept standard miniature thermocouple connectors
• Power supply: 1 x 6F22 9V Battery(Not included)
• Product Size: approx. 150*75*35mm
• Package size: approx. 160*100*50mm
• Net weight: approx. 191g
• Gross weight: approx. 247g

Set Up:

Please click on our learning tab above to watch our video's on how to set up your thermocouple and digital Pyrometer correctly.
