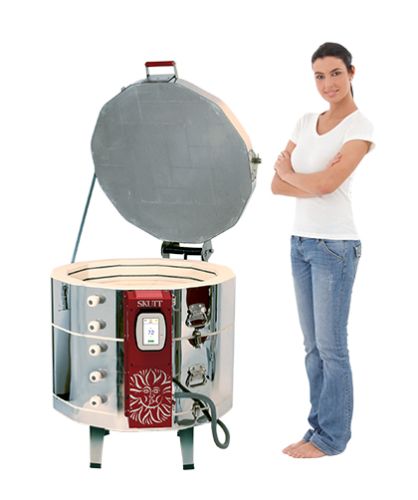

Skutt Ceramic Kiln – 230L Large Capacity Kiln with WiFi Touchscreen Controller
This Skutt ceramic kiln is a powerful, high-capacity solution for pottery and ceramics, ideal for studios, schools, and production environments. With a generous 230L chamber, it comfortably handles large pieces and batch firing while delivering consistent results up to Cone 10 (1287°C).
Built with energy-efficient 3” firebrick insulation and powered by the advanced KilnMaster Touchscreen Controller (KMT) with built-in WiFi, this kiln combines performance, reliability, and modern control.
Key Features
- Large 230L Capacity Kiln – Ideal for high-volume firing
- Cone 10 Capability (1287°C / 2350°F)
- KilnMaster Touchscreen Controller with WiFi
- Three Phase Power – 240V / 20A
- Energy-efficient 3” Brick Insulation
- Lid Safety Switch Fitted
- Heavy-Duty Lid Lifter System
- 2-Year Warranty (Parts & Labour)
- Smart WiFi Touchscreen Controller
- Intuitive Touchscreen Interface
Program your kiln with ease using a smartphone-style touchscreen, featuring guided prompts, clear instructions, and dynamic navigation.
Built-in WiFi & Free Updates
Download free software updates and keep your kiln controller current for the life of the kiln.
FREE Remote Monitoring App
Monitor kiln temperature, firing progress, and status remotely via your smartphone — perfect for long firings and added peace of mind.
Adjustable Hinged Controller
Set the controller to a comfortable viewing angle for programming, then fold it down for easy visibility across your workspace.
Advanced Firing & Programming
ConeFire Mode
Quickly program bisque or glaze firings using cone values. Easily edit previous firings, view firing segments, and monitor progress with live graphing.
Ramp/Hold Programming
Create and store custom firing schedules. Name, save, and copy programs for consistent and efficient results.
Built-in Smart Features
- Guided Start Mode – Step-by-step programming support
- Program Library – Includes specialised firing presets
- On-Screen Help – Built-in assistance on nearly every screen
- Live Graphing – Track firing progress in real time
- Firing Logs – Stores last 10 firings (downloadable to Excel)
- Advanced Diagnostics – Faster fault finding and servicing
- WiFi-Enabled Technician Access
- Current Sensing Technology
This kiln features integrated current sensing, allowing you to monitor:
- Amperage per section
- Voltage and voltage under load
This improves safety, speeds up troubleshooting, and reduces service costs — without exposing live wiring.
Balanced Element Design
Skutt’s balanced element system directs more heat to the lid and floor to compensate for heat loss, ensuring even, consistent firing results. With double element grooves, you benefit from:
- Better heat distribution
- Increased loading flexibility
- Longer element lifespan
- Sectional Kiln Design
- Easy to Move – Breaks down into sections
- Simple Maintenance – Easy access to elements
- Cost-Effective Repairs – Replace individual sections if required
Thermocouple Accuracy
- Exposed thermocouple for faster response and precision
- Easy and inexpensive to replace
- Spare included
- Optional Type S (Platinum) upgrade available
Lid Lifter System
- Lift heavy lids with ease
- Durable stainless steel construction
- Safe and adjustable tension system
Specifications
Suitable for: Earthenware / Stoneware Ceramics & Pottery
- Voltage: 240V
- Power Type: Three Phase
- Amps: 20A
- Watts: 11,520W
- Maximum Temperature: Cone 10 (1287°C / 2350°F)
- Brick Thickness: 3.0”
- Chamber Size: 720mm (W) x 720mm (D) x 570mm (H)
- Volume: 230 Litres
- External Size: 873mm x 873mm x 723mm
- Shipping Size: 1070mm x 1140mm x 1040mm
- Weight: 155kg
- Power Cord: Included
- Warranty: 2 Year Parts & Labour
- Kiln Furniture: Available separately
