Thermocouple 200mm

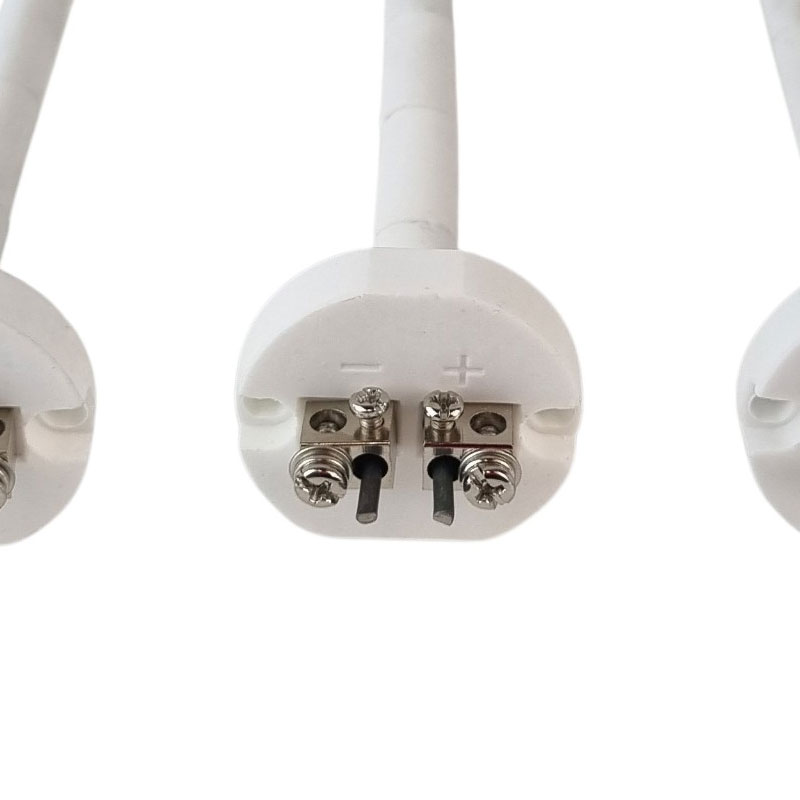

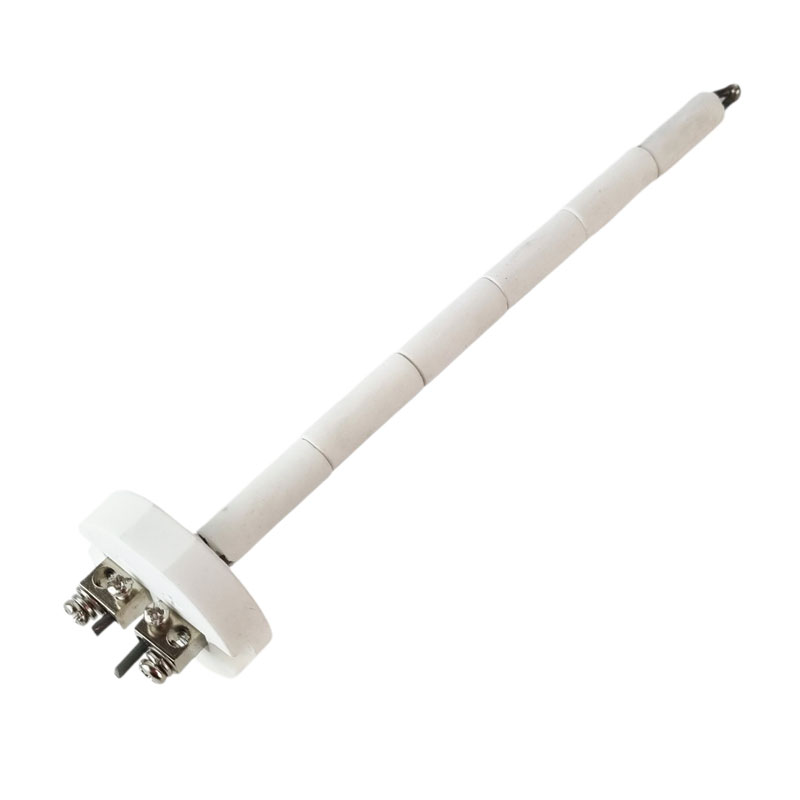

200mm K-Type Thermocouple with ceramic block

Used to measure the internal temperature of a kiln during operation, this K-Type thermocouple (temperature sensor) has a probe length of 200mm (7.9") and temperature range of -50 ~ 1300°C.

Specifications:

• Type: K-Type

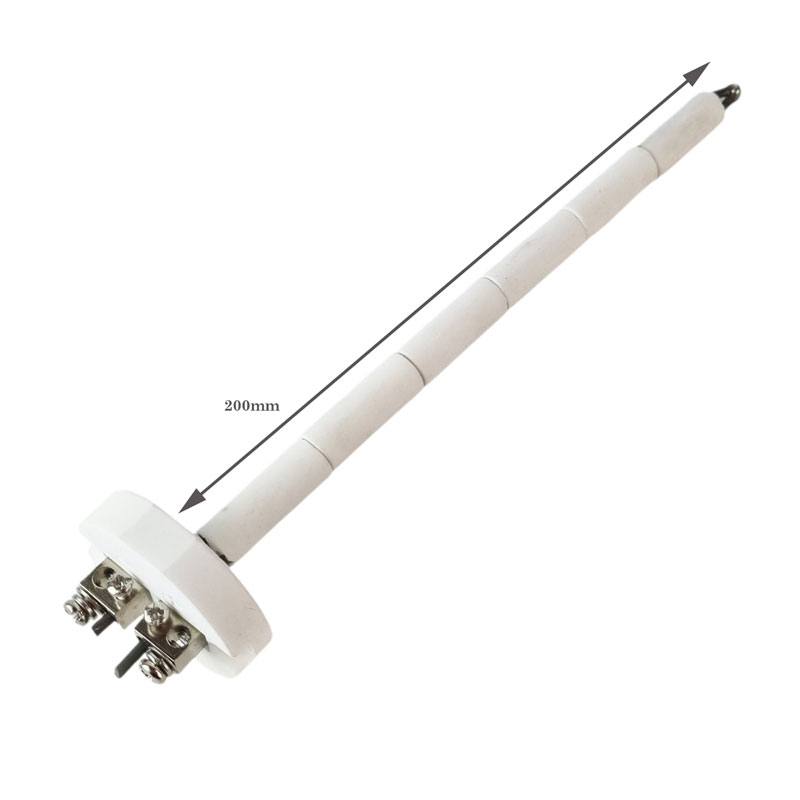

• Probe length: 200mm (7.9")
• Probe diameter: ø 6.4mm (1/4”)
• Temperature range: -50 ~1300°C (-58 ~ 2372 °F)
• Accuracy: ±0.1°C ± 0.4%
• Includes: Ceramic block

Selecting the right thermocouple for your kiln

When selecting a thermocouple for your kiln you will need to take note of the required temperature range and any installation requirements specific to your kiln.

Existing holes will determine probe diameter, and the wall thickness of your kiln will determine the required probe length.
